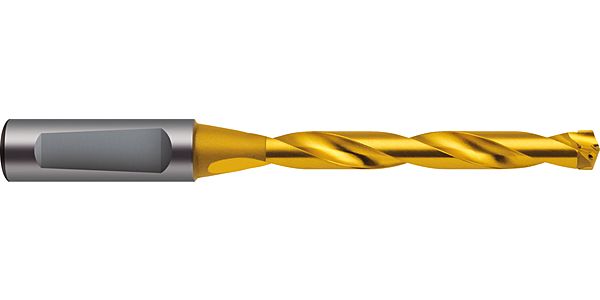

Ratio drills with coolant ducts
-
Aufnahmetyp, maschinenseitig: DIN 6535-HE -
Bearbeitungstiefe: 7xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h7 -
Norm: DIN 6538L -
Oberfläche: TiN -
Schneidrichtung: rechts -
Typ: RT 80 U -
Spitzenwinkel: 140 -
Schneidstoff: HM -
Innenkühlung: mit
Web thinning ≥ Ø 9.600 • relieved cone • HSS holder with brazed carbide insert • dampens vibrations and shocks
SKU
1173
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
unalloyed/low alloyed steels • grey cast iron, spheroidal graphite iron • brass, bronzes, plastics, graphite
Available in many variants
