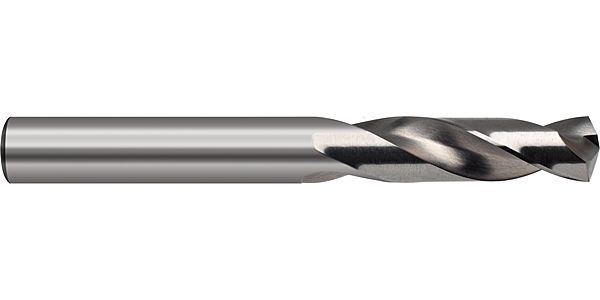

Twist drills extra-short
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Bearbeitungstiefe: ~3xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h8 -
Norm: DIN 1897 -
Oberfläche: blank -
Schneidrichtung: rechts -
Typ: N -
Spitzenwinkel: 135 -
Schneidstoff: M42 -
Innenkühlung: ohne
Web thinning ≥ Ø 1.000 • relieved cone • high Co- and Mo-content • especially high wear resistance
SKU
1259
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
medium/high tensile CrNi-based alloys • Hastelloy, Inconel, Nimonic • stainless/acid-/heat-resistant steels • wear-resistant sheet metals • steels/bronzes up to 1400 N/mm²
Available in many variants
