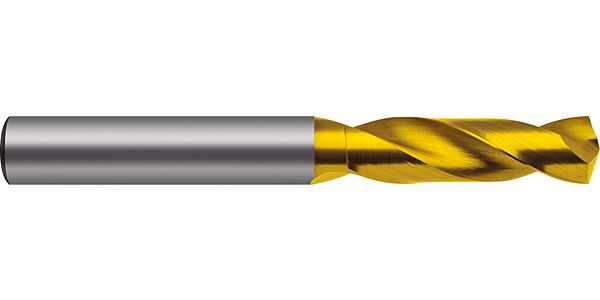

Ratio drills without coolant ducts
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Bearbeitungstiefe: 3xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: m7 -
Norm: DIN 6539 -
Oberfläche: TiN -
Schneidrichtung: rechts -
Typ: RT 100 F -
Spitzenwinkel: 140 -
Schneidstoff: VHM -
Innenkühlung: ohne
Web thinning ≥ Ø 3.000 • relieved cone • main cutting edge form concave • optimised cutting edge geometry • sharp cutting characteristics
SKU
1702
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
stainless/acid-/heat-resistant steels • Inconel, Hastelloy, Monel • brass, bronzes • aluminium and Al alloys • magnesium and magnesium alloys • Titanium and Titanium alloys • sintered powder metals • high-alloyed steels
Available in many variants
