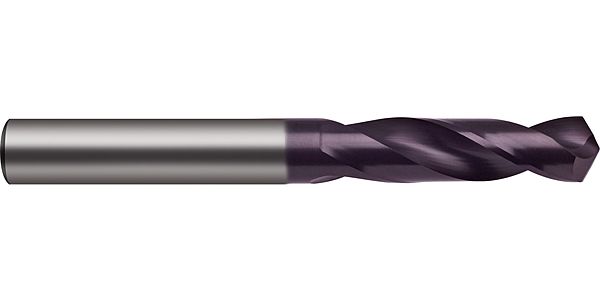

Twist drills extra-short
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Bearbeitungstiefe: 3xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: ± 0,015 -
Norm: Werksnorm -
Oberfläche: nanoFIRE -
Schneidrichtung: rechts -
Typ: N -
Spitzenwinkel: 118 -
Schneidstoff: VHM -
Innenkühlung: ohne
Web thinning ≥ Ø 2.060 • facet point grind • main cutting edge form straight
SKU
2463
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
structural and case hardened steels • free-cutting steels, heat-treatable steels • cast materials • brass • Al materials with high Si-content • magnesium and magnesium alloys • plastics and fiber reinforced plastics
Available in many variants
