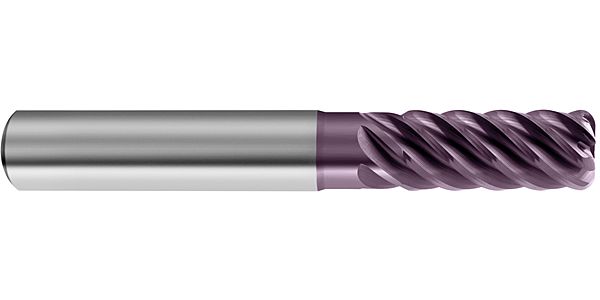

Multi-tooth end mills with corner radius GH 100 U
-
Aufnahmetyp, maschinenseitig: DIN 6535-HA -
Ø-Toleranz: f9 -
Norm: DIN 6527L -
Oberfläche: FIRE -
Schneidrichtung: rechts -
Typ: NH -
Schneidstoff: VHM -
Schneidenzahl: 6+ -
Form: A -
Härte: ≤ 55 -
Spiralwinkel (Spanwinkel): 45 -
Pikto Anschnitt: R002 -
Pikto Länge: lang -
Pikto Rückspanwinkel: 7 -
Pikto Schlichten: schlichten -
Pikto Zustellung: ohne_bohren -
Innenkühlung: ohne -
Produkt-Logo: GTC -
Pikto Kopieren: kopieren
neck clearance • without centre cutting
SKU
3563
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
