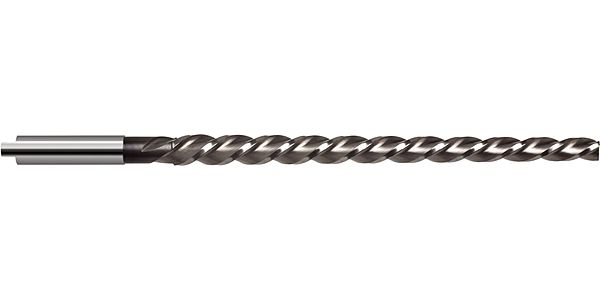

Machine taper reamers
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Norm: DIN 2179 -
Oberfläche: blank -
Schneidrichtung: rechts -
Schneidstoff: HSS-E -
Bohrungsart: Durchgangsloch -
Nut: linksgenutet -
Innenkühlung: ohne
with 1:50 taper for reaming holes for taper pins to DIN 1, 258, 7977 and 7978 • ≤ Ø 4.00 mm with external centres on both ends • > Ø 4.00 mm with internal centres on both ends • ≤ Ø 1.50 mm to company standard • with tang to DIN 1809
SKU
410
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
For pre-machining we recommend taper pin drills article no. 531 and 532. However, the pre-drilled hole can also be cylindrical or stepped.
Available in many variants
