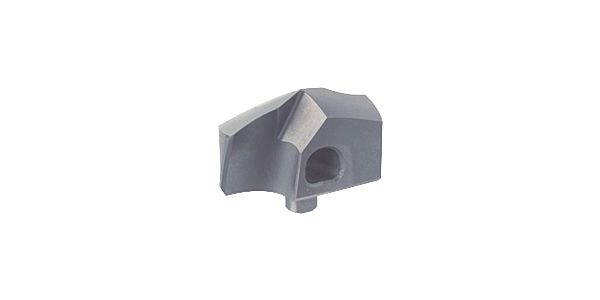

Interchangeable inserts HT 800
-
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h7 -
Norm: Werksnorm -
Oberfläche: blank -
Schneidrichtung: rechts -
Typ: HT 800 WP -
Spitzenwinkel: 140 -
Schneidstoff: VHM -
Innenkühlung: ohne
Web thinning ≥ Ø 11.000 • relieved cone • main cutting edge form concave • clamping screws art. no. 4071 included
SKU
4114
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
aluminium and Al alloys • non-ferrous metals
Available in many variants
