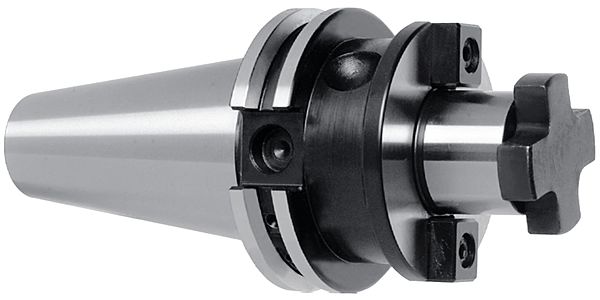

Milling arbors
-
Aufnahmetyp, maschinenseitig: CAT ASME B5.50 -
Norm: Werksnorm -
Oberfläche: browned -
Innenkühlung: mit -
Produkt-Logo: GUEJET
CAT to ASME B5.50 • coolant supply form AD/AF • balancing quality: G 6.3 / 15,000 rpm • for holding milling cutter heads • clamping-Ø 40 with 4 additional tapped holes to hold milling heads with tool attachment DIN 2079 and larger contact-Ø d2 • for central internal cooling
SKU
4222
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
