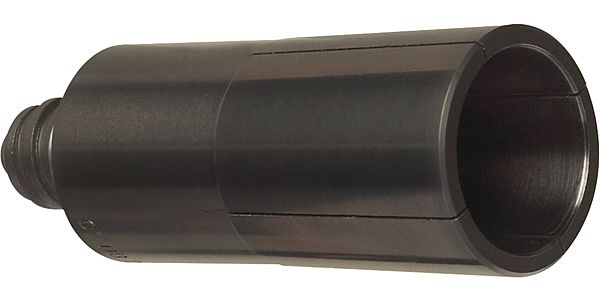

Clamping sleeves
-
Aufnahmetyp, maschinenseitig: ~DIN 6535-HA -
Norm: Werksnorm
- for clamping tools with straight shank
- for tool shanks d1 h6
- high holding torque
- sealed design with short slots
- type 1: for HPC power chucktype 2: for HPC extensions
SKU
4235
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
