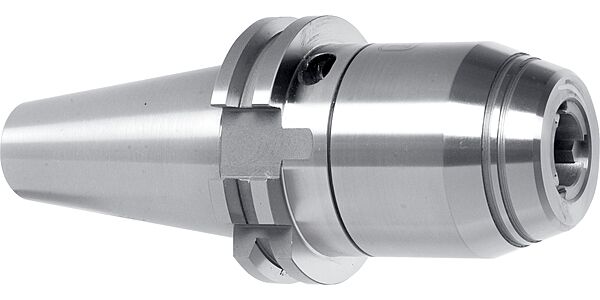

NC drilling chucks
-
Aufnahmetyp, maschinenseitig: Steilkegel -
Norm: Werksnorm -
Innenkühlung: mit -
Produkt-Logo: GUEJET
ISO taper to DIN ISO 7388-1 form AD • balancing quality: G 2.5 / 20,000 rpm • for clamping straight shank tools • infinitely variable Ø clamping range • high clamping force thanks to robust worm gear • coolant pressure max. 50 bar • balance: G 2.5 / 20,000 rpm
SKU
4242
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
