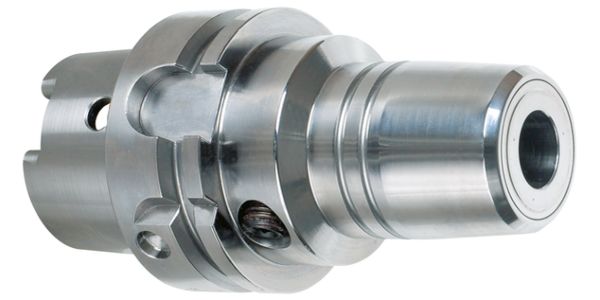

Hydraulic chucks
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: DIN 69882-7 -
Oberfläche: blank -
Innenkühlung: mit
HSK-A according to ISO 12164-1 / DIN 69893-1 • dimensions according to DIN 69882-7 • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • concentricity < 3 µm l1 from 120 mm: max. 4 µm, l1 from 150/160 mm: max. 5 µm, l1 from 200 mm: max. 7 µm
SKU
4299
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
