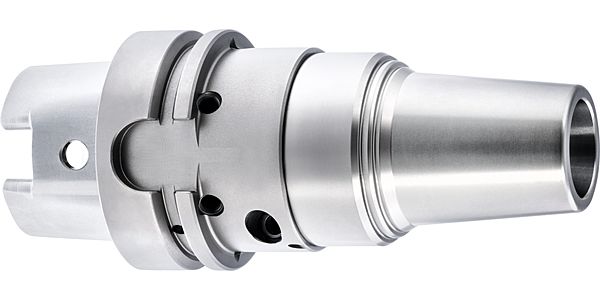

Precision clamping chucks
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Innenkühlung: mit
HSK-A according to ISO 12164-1 / DIN 69893-1 • balancing quality: G 2.5 / 20,000 rpm or U < 1.2 gmm • incl. balancing thread 6xM6 • axial length adjustment • for tool shanks d1 h6 • for heavy-duty machining as well as HSC and HPC • highest clamping force and stability thanks to mech. tension gearing • actuation torque for clamping force introduction max. 10 Nm • suitable for internal cooling up to 80 bar
SKU
4300
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
