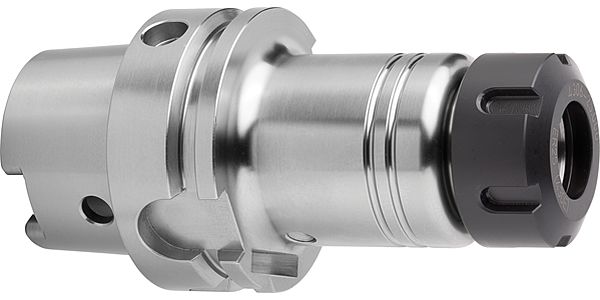

Collet holders
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Oberfläche: browned -
Innenkühlung: mit
- HSK-A according to ISO 12164-1 / DIN 69893-1
- for collet chuck holders with adjustment angle 8° to DIN ISO 15488
- balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm
- sealed, suitable for coolant pressure up to 100 bar thanks to the application of IC clamping nuts and suitable sealing disks
SKU
4324
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
