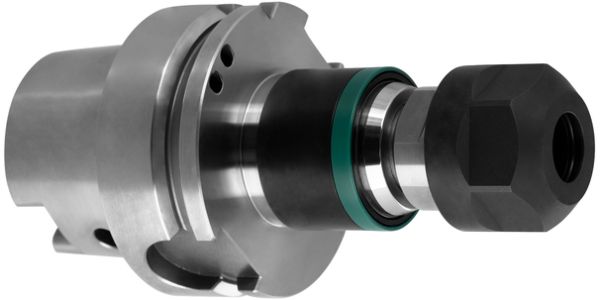

Synchro tapping chucks for the manual tool change cycle
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Innenkühlung: mit -
Produkt-Logo: MQL1
HSK-A according to ISO 12164-1 / DIN 69893-1 • for MQL 1-channel systems • compensates synchronisation errors • minimum length compensation ± 0.5 mm in pushing and pulling direction • adjusting screw enables 2-3 mm readjustment • MQL pressure max. 16 bar • mounted MQL coolant transfer set
SKU
4330
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
