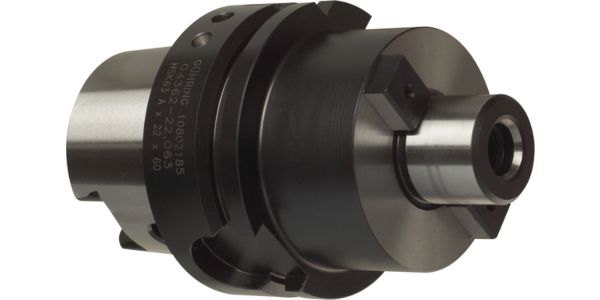

Milling arbors
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: ~DIN 69882-3 -
Oberfläche: browned -
Innenkühlung: mit -
Produkt-Logo: GUEJET
HSK-A according to ISO 12164-1 / DIN 69893-1 • according to DIN 69882-3 • balancing quality: G 6.3 / 15,000 rpm • for holding milling cutter heads • for centralised or decentralised internal cooling, therefore process and tool life improvement • for holder Ø 40 and Ø 60, additionally with 4 threaded holes for holding cutter heads with tool attachment in accordance with DIN 2079 and increased contact Ø D2 • balancing thread 6xM6
SKU
4362
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
