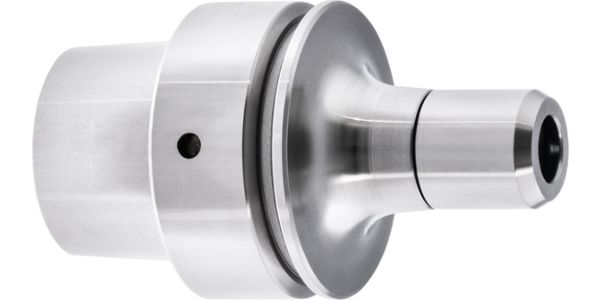

Collet holders
-
Aufnahmetyp, maschinenseitig: HSK-E -
Norm: Werksnorm -
Oberfläche: browned -
Stempel: NEU -
Innenkühlung: mit
HSK-E according to DIN 69893-5, without access hole in taper • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for ER11 high-precision collet holders (similar to ISO 15488), art. no. 4574 and 4575 • concentricity overall system < 3 µm (at 3 x clamping-Ø max. 50 mm) • observe maximum tightening torque values of clamping nutclamping Ø 1.0 - 2.5 = 7 Nmclamping Ø 3.0 - 7.5 = 10 Nm • without adjusting screw
SKU
4475
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
