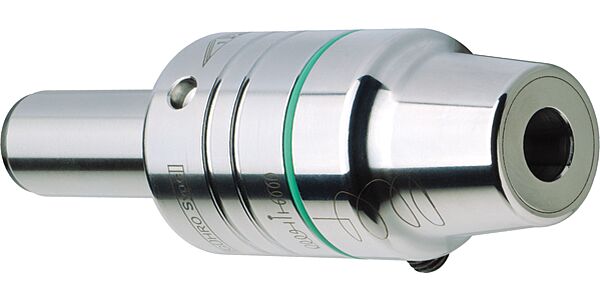

Synchro tapping chucks
-
Aufnahmetyp, maschinenseitig: DIN 6535-HA -
Norm: Werksnorm -
Oberfläche: blank -
Innenkühlung: mit -
Produkt-Logo: GUESYNC
- mounting shank according to DIN 1835-A for mounting in precision chucks (hydraulic expansion or power chucks, shrink fit chucks for one-time use)
- für MQL 1 & 2-channel systems, according to company standard
- MQL pressure max. 16 bar
- guarantees the best thread quality with optimum tool life
- minimum length compensation ± 0.3 mm in pushing and pulling direction
- convenient hydraulic clamping using reduction bushes with active drive
- adjusting screw enables 3 mm axial length readjustment
SKU
4524
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
