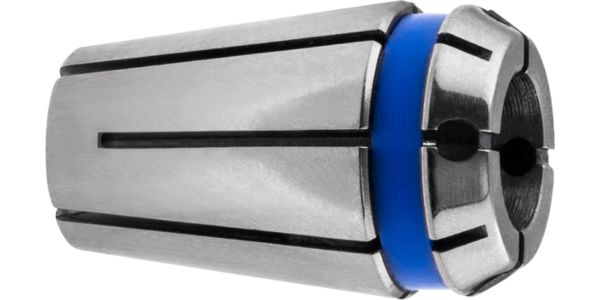

ER Präzisionsspannzangen
-
Norm: Werksnorm
- precision collet holders, sealed ER11 sim. ISO 15488
- especially for precision collet holders art. nr. 4475 and 4476
- for tool shanks h8
- concentricity < 2 µm
- no clamping bridging
- observe maximum tightening torque values of clamping nutclamping Ø 1.0 - 2.5 = 7 Nmclamping Ø 3.0 - 7.5 = 10 Nm
SKU
4575
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
