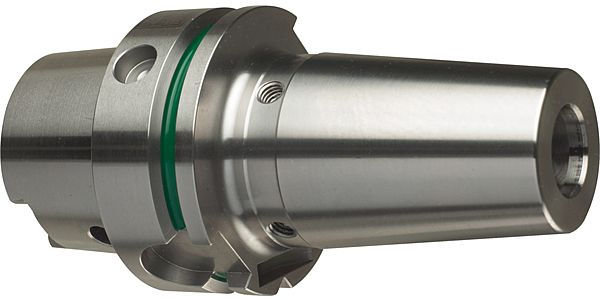

Shrink fit chucks for the manual tool change cycle
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Oberfläche: blank -
Produkt-Logo: MQL2
- HSK-A according to ISO 12164-1 / DIN 69893-1
- balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm
- for tool shanks d1 h6
- for MQL 2-channel systems, to company standard
- incl. balancing thread 4xM6/6xM6
- even in excess lengths l1 = 120 mm (concentricity 4 μm) and 160 mm (concentricity 5 μm)
- cross-section A (mm²) ratio 4:1, see info page
SKU
4613
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
