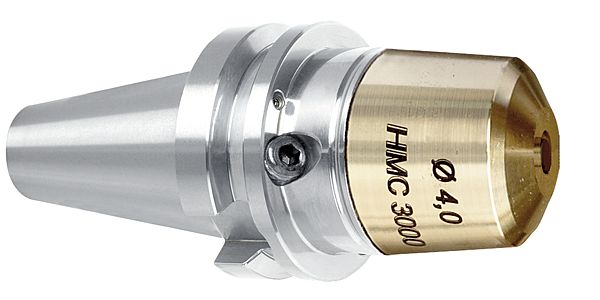

Hydraulic chucks
-
Aufnahmetyp, maschinenseitig: MAS-BT -
Norm: Werksnorm -
Oberfläche: blank -
Typ: HMC 3000 -
Produkt-Logo: GUEJET
MAS/BT according to DIN ISO 7388-2 form JD/JF (AD/B) • BT30 in JD design without coolant supply via the collar • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • perfect concentricity: < 3 μm bei 10xd1 • high clamping force • quick, easy handling and precise length adjustment only possible from the front • IC and Gührojet peripheral cooling ensure optimal chip removal and tool lubrication • for tool shanks d1 h6 • for small clamping diameters
SKU
4620
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
