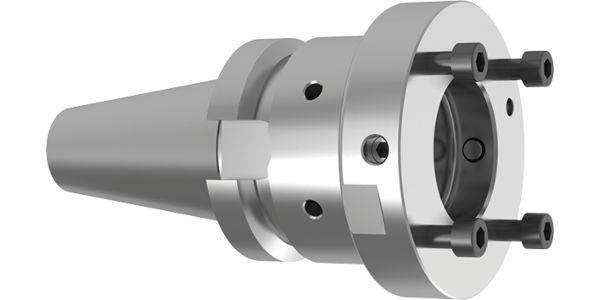

Module 4x4 taper alignment adapter
-
Aufnahmetyp, maschinenseitig: MAS-BT -
Norm: Werksnorm -
Oberfläche: blank -
Innenkühlung: mit
MAS/BT to DIN ISO 7388-2 form JD • balancing quality: G 6.3 / 15,000 rpm • suitable for MQL and conventional cooling • cooling lubricant without loss and flow-disruption thanks to the use of an intermediate tube • for the highly accurate alignment of all modular flanges 4x4 • 6 balancing threads M6
SKU
4709
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
