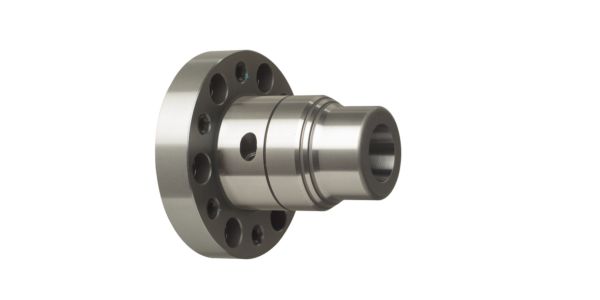

HPC clamping chuck flange
-
Norm: Werksnorm -
Oberfläche: blank -
Typ: Modul 6x6 -
Innenkühlung: mit
highest concentricity, clamping force and rigidity thanks to mech. tension gearing • for the highly accurate radial and axial alignment on alignment adaptors or machine spindles • for tool shanks d1 h6 • cooling lubricant without loss and flow-disruption thanks to the use of an intermediate tube • suitable for internal cooling up to 80 bar • positive damping properties
SKU
4714
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
