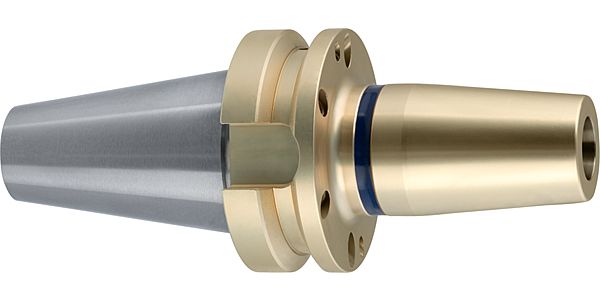

Shrink fit chucks
-
Aufnahmetyp, maschinenseitig: MAS-BT -
Norm: Werksnorm -
Oberfläche: Zenit
MAS/BT according to DIN ISO 7388-2 form JD/JF (AD/B) • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for tool shanks d1 h6 • concentricity < 3 µm • with axial damping screw for optimal concentricity • design for 6xM6 balancing screws for maximum accuracy • coating for protection against oxidation cleanliness and longevity • safety colour ring for maximum operator safety
SKU
4728
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
