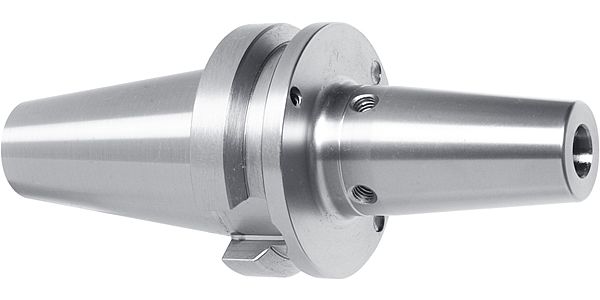

Shrink fit chucks
-
Aufnahmetyp, maschinenseitig: MAS-BT -
Norm: Werksnorm -
Oberfläche: blank
MAS/BT to DIN ISO 7388-2 Form JD/JF • BT30 in JD design without coolant supply via the collar • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • balancing thread 4xM6/6xM6 • concentricity < 3 μml1 from 130 mm = 4 μm
SKU
4739
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
