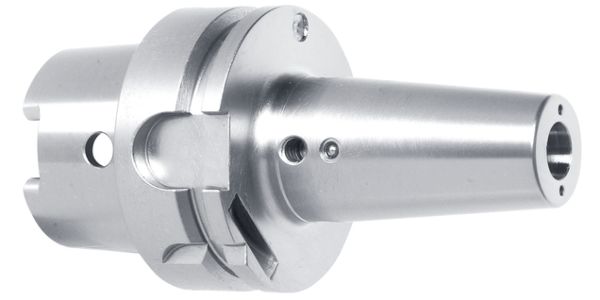

Shrink fit chucks
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Oberfläche: blank -
Produkt-Logo: GUEJET
HSK-A according to ISO 12164-1 / DIN 69893-1 • dimensions according to DIN 69882-8 • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • concentricity < 3 µml1 from 120 mm: = 4 µm • balancing thread 4xM6/6xM6 • optimised cooling lubrication for tools without internal coolant • good chip evacuation and increased process reliability • coolant ducts: d1 = 6 - 10 mm with two coolant ducts, d1 = 12 - 32 mm with four coolant ducts
SKU
4755
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
