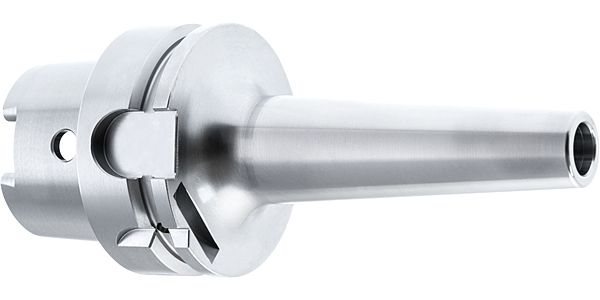

Shrink fit chucks
-
Aufnahmetyp, maschinenseitig: HSK-A -
Norm: Werksnorm -
Oberfläche: blank -
Stempel: NEU
HSK-A according to ISO 12164-1 / DIN 69893-1 • balancing quality: G 2.5 / 25,000 rpm or rev. < 1 gmm • for carbide tool shanks in tolerance h6 (from d1 14 mm also HSS possible) • axial length adjustment • Concentricity < 3 µml1 up to 120 mm: max. 4 µml1 up to 160 mm: max. 5 µm
SKU
4787
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
