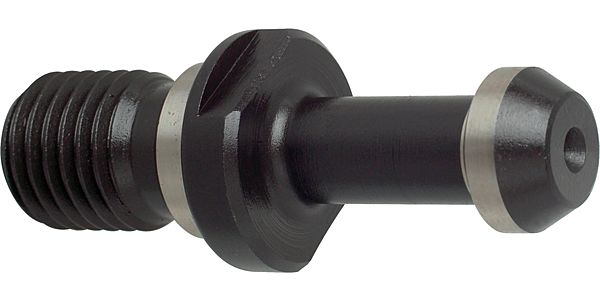

Pull studs
-
Norm: DIN ISO 7388-3 -
Form: JF/JD
for tool holders to DIN ISO 7388-2 (MAS 403 BT) • 60° clamping shoulder angle • design JD sealed with through hole • design JF without through hole • 40.100 shortened and sealed, for draw-in clamping force test equipment art. no. 4973
SKU
4928
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
