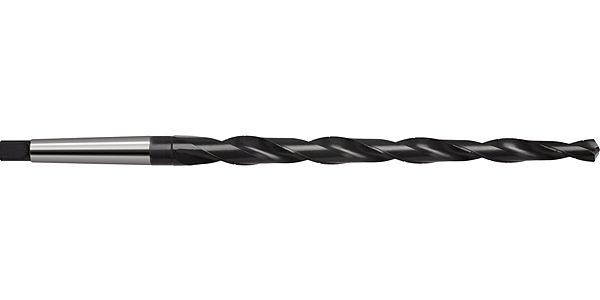

Taper pin drills
-
Aufnahmetyp, maschinenseitig: Morsekegel -
Ø-Ausspitzung: 3.000 -
Norm: DIN 1898 -
Oberfläche: dampfbehandelt -
Schneidrichtung: rechts -
Typ: N -
Spitzenwinkel: 118 -
Schneidstoff: HSS -
Innenkühlung: ohne
Web thinning ≥ Ø 5.000 • relieved cone • for tapered holes for holding taper pins to DIN 1 (new: DIN EN 22339, DIN 7978 (new: DIN EN 28736), DIN 7977 (new: DIN EN 28737) and DIN 258
SKU
532
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
