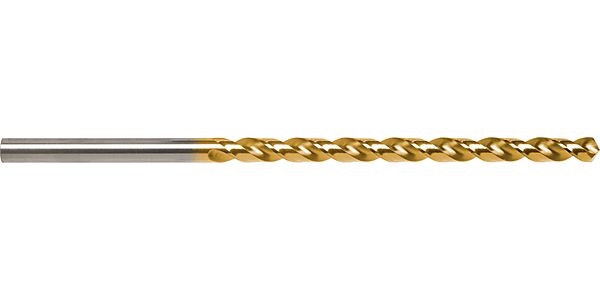

Twist drills long
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Bearbeitungstiefe: ~10xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h8 -
Norm: DIN 340 -
Oberfläche: TiN -
Schneidrichtung: rechts -
Typ: GU 500 DZ -
Spitzenwinkel: 118 -
Schneidstoff: HSCO -
Innenkühlung: ohne
Web thinning ≥ Ø 1.000 • facet point grind • Co-alloyed high speed steel • low torque required • low feed force required • increased wear resistance • for universal application • only suitable for short drilling depths when used at full length for reach purposes or interferences
SKU
5537
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics
Available in many variants
