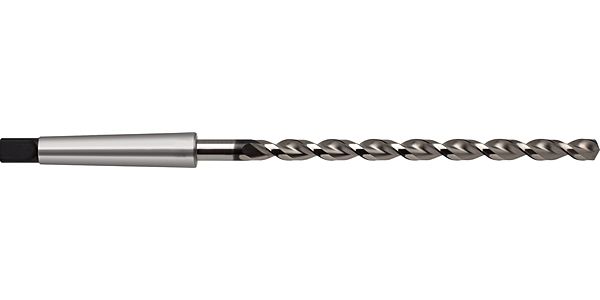

Twist drills extra-long
-
Aufnahmetyp, maschinenseitig: Morsekegel -
Bearbeitungstiefe: 20xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h8 -
Norm: Werksnorm -
Oberfläche: Fasen nitriert/dampfbehandelt >16,0 -
Schneidrichtung: rechts -
Typ: GT 100 -
Spitzenwinkel: 130 -
Schneidstoff: HSS -
Innenkühlung: ohne
Web thinning ≥ Ø 8.000 • relieved cone • wide flutes • in case of poor chip evacuation • for extremely deep holes
SKU
566
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
grey cast iron and steels up to 1000 N/mm² • not recommended for: CrNi steels, stainless steels
Available in many variants
