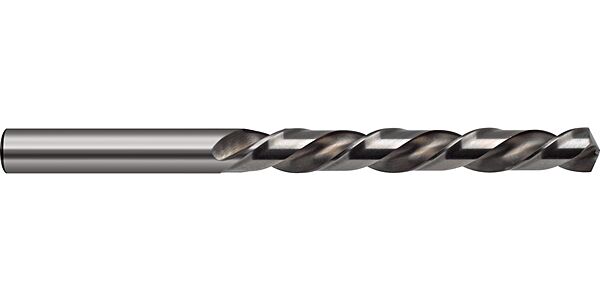

Twist drills short
-
Aufnahmetyp, maschinenseitig: Zylinderschaft -
Bearbeitungstiefe: ~5xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h8 -
Norm: DIN 338 -
Oberfläche: blank -
Schneidrichtung: links -
Typ: Ti -
Spitzenwinkel: 130 -
Schneidstoff: HSCO -
Innenkühlung: ohne
Web thinning ≥ Ø 1.000 • relieved cone • Co-alloyed high speed steel • increased wear resistance
SKU
608
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Titanium and Titanium alloys • stainless/acid-/heat-resistant austenitic steels • high tensile/short chipping steels over 900 N/mm² • Hastelloy, Inconel, Nimonic
Available in many variants
