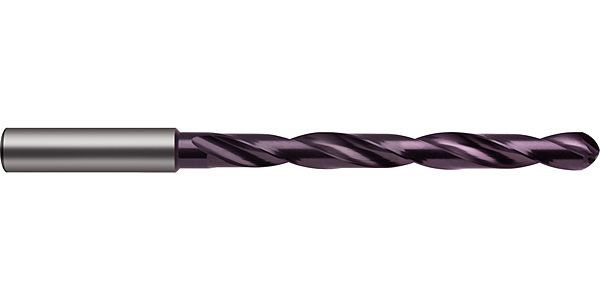

Ratio drills with coolant ducts
-
Aufnahmetyp, maschinenseitig: DIN 6535-HA -
Bearbeitungstiefe: 7xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: m7 -
Norm: Werksnorm -
Oberfläche: FIRE -
Schneidrichtung: rechts -
Typ: RT 100 R -
Schneidstoff: VHM -
Innenkühlung: mit
Web thinning ≥ Ø 4.000 • patented radius point grind • main cutting edge form straight (after correction)
SKU
6502
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
vermicular cast iron GGV and ADI, CDI • grey cast iron, malleable and spheroidal iron
Available in many variants
