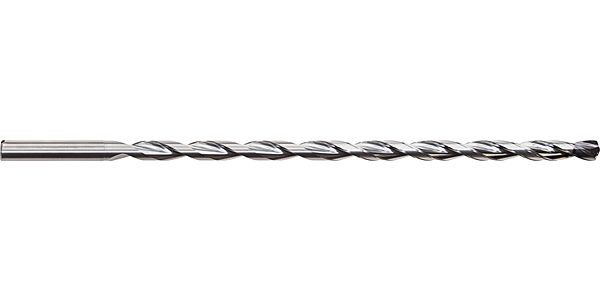

Ratio drills with coolant ducts
-
Aufnahmetyp, maschinenseitig: DIN 6535-HA -
Bearbeitungstiefe: 20xD -
Ø-Ausspitzung: 3.000 -
Ø-Toleranz: h7 -
Norm: Werksnorm -
Oberfläche: TiAlN -
Schneidrichtung: rechts -
Typ: RT 100 T -
Spitzenwinkel: 135 -
Schneidstoff: VHM -
Härte: 48 -
Innenkühlung: mit
Web thinning ≥ Ø 3.000 • main cutting edge form concave • optimised flute cross-section • maximum diameter of coolant ducts • observe coolant pressure
SKU
6511
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • stainless steels • cast materials
Available in many variants
