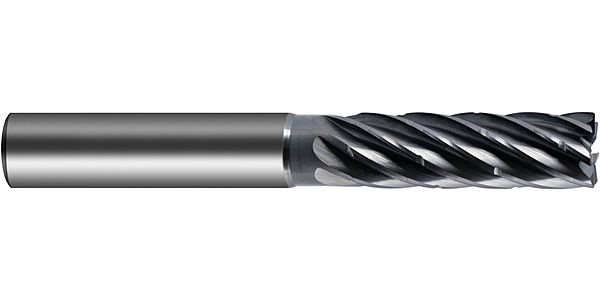

Ratio end mills RF 100 7 Speed
-
Aufnahmetyp, maschinenseitig: DIN 6535-HA -
Bearbeitungstiefe: 3xD -
Ø-Toleranz: h10 -
Norm: Werksnorm -
Oberfläche: TiAlN-SuperA -
Schneidrichtung: rechts -
Typ: N -
Schneidstoff: VHM -

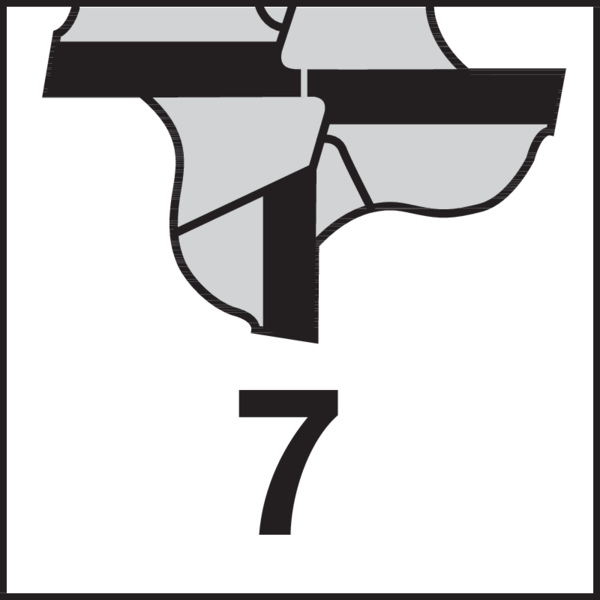

Schneidenzahl: 7 -

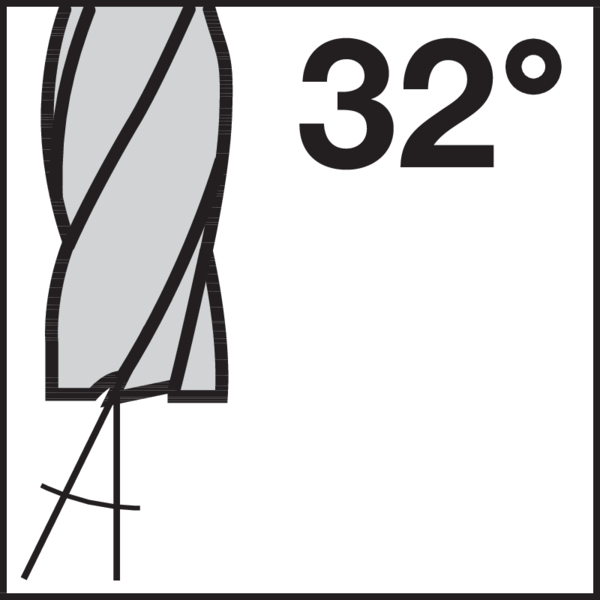

Spiralwinkel (Spanwinkel): 32 -
Pikto Anschnitt: 45 -
Pikto Helix: helix -
Pikto Länge: 3xD -
Pikto Rückspanwinkel: 9 -
Pikto Schlichten: schlichten -
Pikto Schruppen: schruppen -
Pikto Zustellung: ohne_bohren -
Innenkühlung: ohne -
Produkt-Logo: GTC
with chip breaker • neck clearance • without centre cutting
SKU
6864
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Available in many variants
